How do I replace the drive belt on my Petrol Lawnmower

This guide explains how to replace or refit the drive belt on your petrol lawnmower. The drive belt is an essential part of the self-propel system and transfers power between the engine and gearbox.

In some cases, the belt may slip off during use or need to be removed when replacing components such as the blade or control cables.

Table of Contents

1. When to Replace the Drive Belt
2. Accessing the Drive Belt
3. Fitting the Drive Belt
4. Final Alignment and Tensioning
5. Additional Notes

When to Replace the Drive Belt

The drive belt may need attention if:

• The self-propel system is not working
• The mower is not driving forward correctly
• The belt has slipped off the pulleys
• The belt appears worn, cracked, or stretched

In many cases, the belt may simply need refitting rather than replacement.

Accessing the Drive Belt

On some models, access may be improved by removing the belt cover.

Optional Step – Remove the Belt Cover

• Locate the plastic belt guard between the blade and gearbox
• Remove the securing screws and fixing bolts
• Carefully lift off the cover

This will expose the drive belt and pulleys for easier refitting.

Fitting the Drive Belt

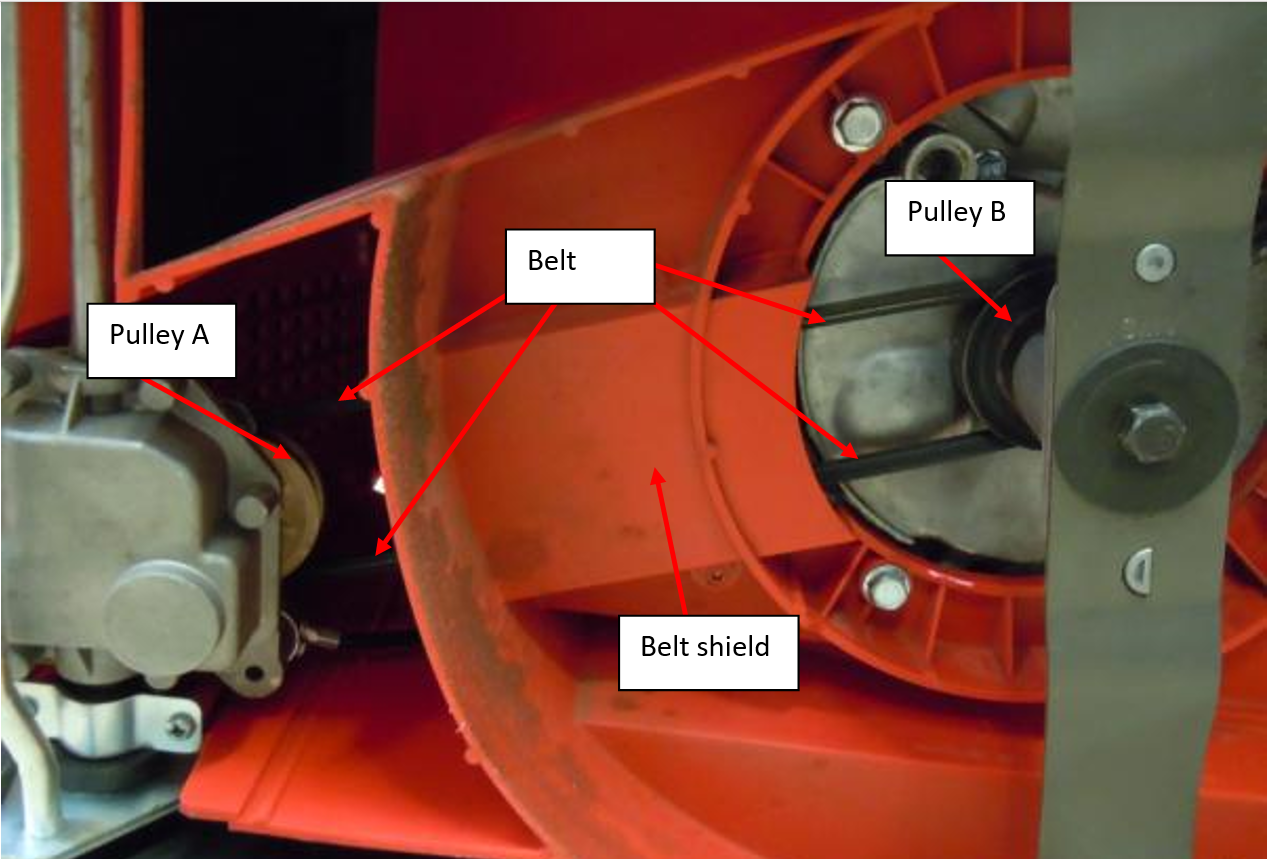

The drive belt connects between two main pulleys:

• Pulley A: Gearbox pulley (silver housing)
• Pulley B: Engine or blade drive pulley

Step 1 – Position the Belt on the Blade Area

• Feed the belt over the blade area first
• Do not fully seat it onto Pulley B at this stage

Step 2 – Route the Belt Through the Deck

• Feed the belt underneath the belt shield or mower body housing
• Ensure the belt is not twisted or trapped

Step 3 – Fit the Belt onto Pulley A

• Loop the belt around Pulley A (gearbox pulley)
• The gearbox may tilt slightly to provide tension—this is normal

Ensure the belt is fully seated in the pulley groove.

Step 4 – Align the Belt with Pulley B

• Position the belt in line with Pulley B
• Check that the belt is correctly routed and not misaligned

Step 5 – Seat the Belt onto Pulley B

• Rotate the blade carefully by hand (wearing gloves)
• Continue rotating until the belt “walks” itself onto Pulley B

The belt should settle smoothly into place without force.

Final Alignment and Tensioning

Once fitted:

• Check that the belt sits correctly in both pulley grooves
• Ensure there are no twists or misalignment
• Confirm the belt moves freely when the blade is rotated
• Refit the belt cover if it was removed
